With the 210-5 EQ MT you can drill five holes at once and quickly reposition the drill using the fingertip controls to shift it left or right. Like all of E-Z Drill’s equipment-mounted models, the 210-5 EQ MT can drill to 18 inches deep. You can power it with a 500 cfm air compressor or with our 120-gallon air tank and a 375 cfm air compressor. The drill features a safety swivel lock that secures it for safe transportation from patch to patch.

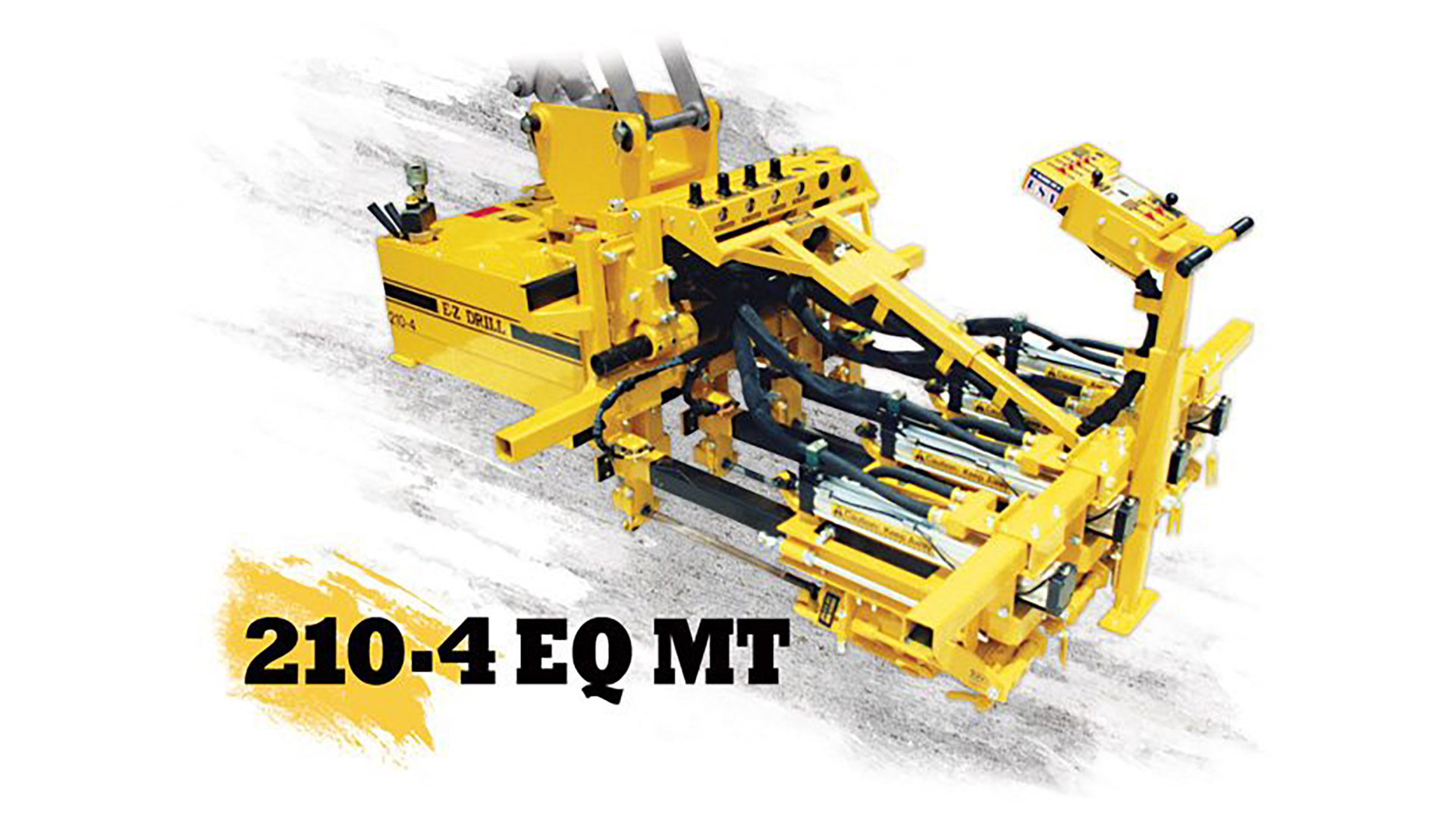

Attach the 210-4 EQ MT to nearly any backhoe or excavator for drilling four holes at once. You can drill to depths of 18 inches and adjust the height of the gangs for accurate drilling in areas with extreme asphalt overlay. The unit’s “floating” bucket curl pin helps level the drill, which saves you time by eliminating the need for manual leveling or positioning.

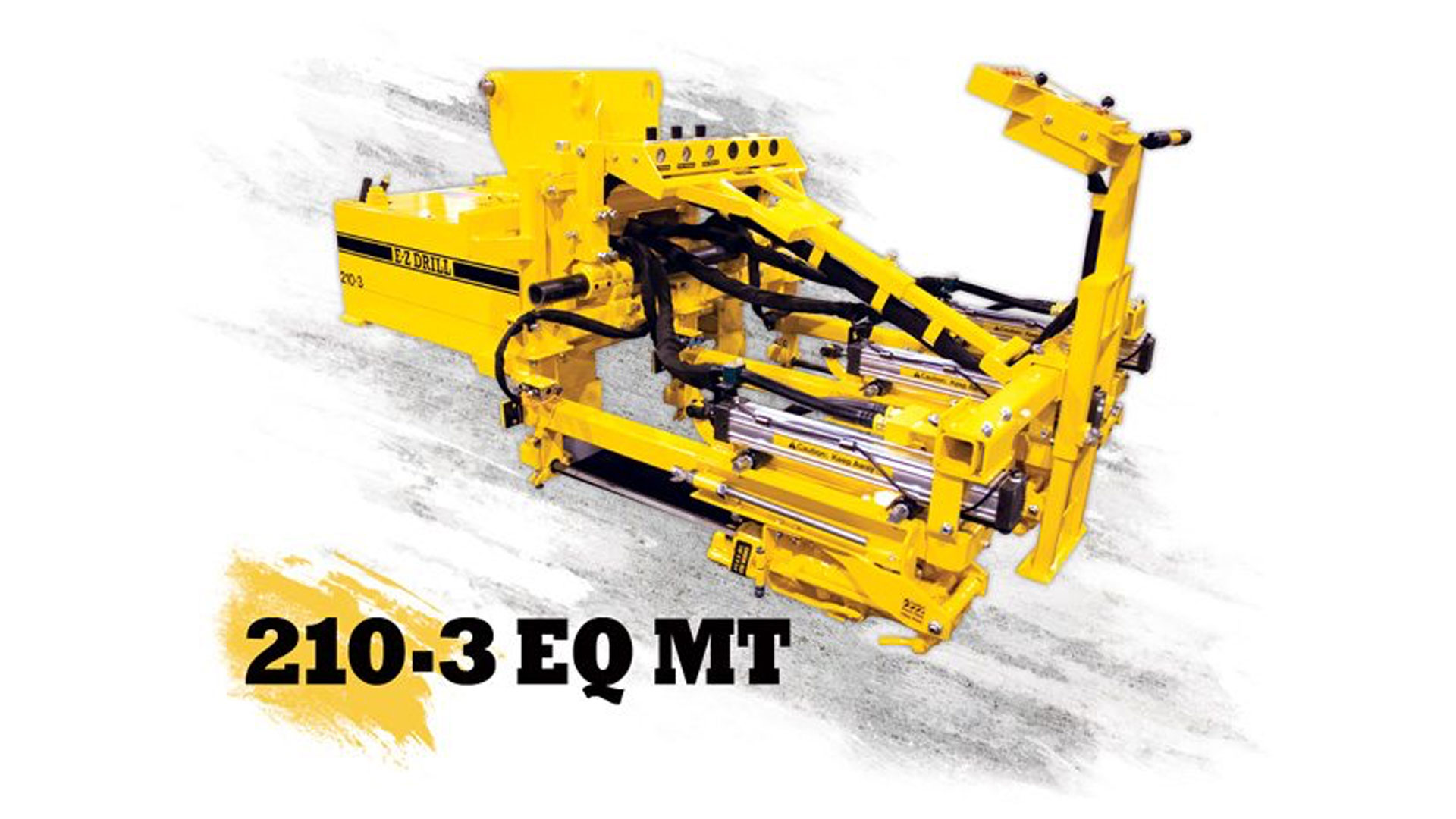

Let a backhoe or excavator do the work with the 210-3 EQ MT. It can drill three holes at once, and you can use the unit’s side-shift control for drilling a second set of holes without having to reposition. A “floating” bucket curl pin helps level the drill, which saves you time because there’s no need to manually level and position the drill.

Achieve greater efficiency with the 110B single-gang, on-grade drill that’s equipped with dual-purpose guide wheels to quickly transition from riding along the face of the slab to moving around the jobsite. The drill operates on the subgrade and fits in a 3-foot patch. A minimum of 50 cfm is required to run the totally pneumatic system, which can drill holes as deep as 12 inches in diameters of 5/8 of an inch to 2 inches. Users can install the optional hole spacing guide, which clearly indicates where to place the 170-pound drill, for even greater accuracy and efficiency when repositioning.

The 85B on-grade drill can work in areas as tight as a 30 inch trench, and it can center on slabs as thick as 2 feet. Operators can equip the drill with 5/8- to 2-inch diameter bits and drill to 9-inch depths. The compact unit weighs only 85 pounds, so it’s easy to reposition, load and unload. Install E-Z Drill’s optional wheels for even faster repositioning. And for greater versatility on projects that require vertical drilling, users also can install the optional vertical conversion kit.

Use the 20 UTL to increase safety and speed on vertical drilling projects. The frame-mounted drill absorbs vibrations to prevent hand, arm and back injuries commonly associated with handheld drilling. Operators can use the 20 UTL in a variety of applications, such as pinpointing gas leaks, where speed, precision and safety are paramount. Users can drill 5/8- to 2-1/2-inch holes as deep as 18 inches with a minimum of 100 cfm. We also can configure the 20 UTL to drill several feet deep for specific application requirements.
