3/8 Inch Hydraulic Hose Assemblies

A 3/8 inch hose is nominally dash size -6, but hose diameter alone does not determine the fitting. The correct fitting depends on the hose construction, connection type, thread, equipment circuit and required orientation. Common connection options may include JIC, NPTF, ORFS, ORB, SAE flange, metric and quick-coupler ends, although branch stock varies. Provide the failed hose, equipment details or accurate measurements before crimping.

High-pressure classification is based on the hose construction and its rated working pressure for the specific circuit, not simply its bore size. Excavator implement and hammer circuits can experience pressure spikes and impulse cycling, so the selected construction must suit the application. McCann does not publish a universal working-pressure rating for 3/8 inch assemblies; the rating must be confirmed from the selected hose construction and matched assembly system.

Provide the failed hose whenever possible, along with the machine make, model and serial number. The assembler also needs the overall length, fitting style, thread type, end orientation or clocking, hose construction and hydraulic fluid information. If the old hose is unavailable, accurate measurements and clear photographs can help, but the final configuration should be confirmed before crimping because custom-made assemblies may not be returnable.

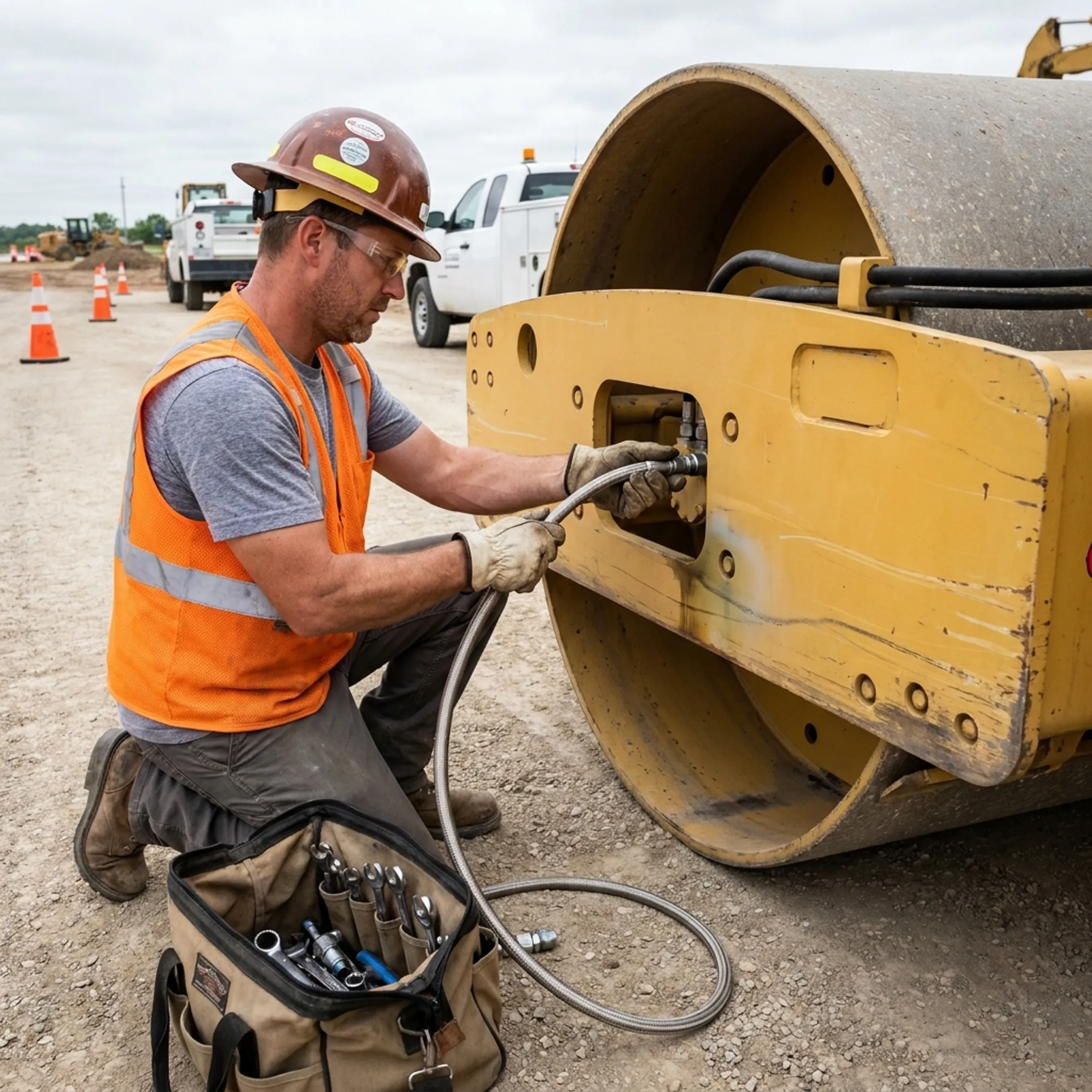

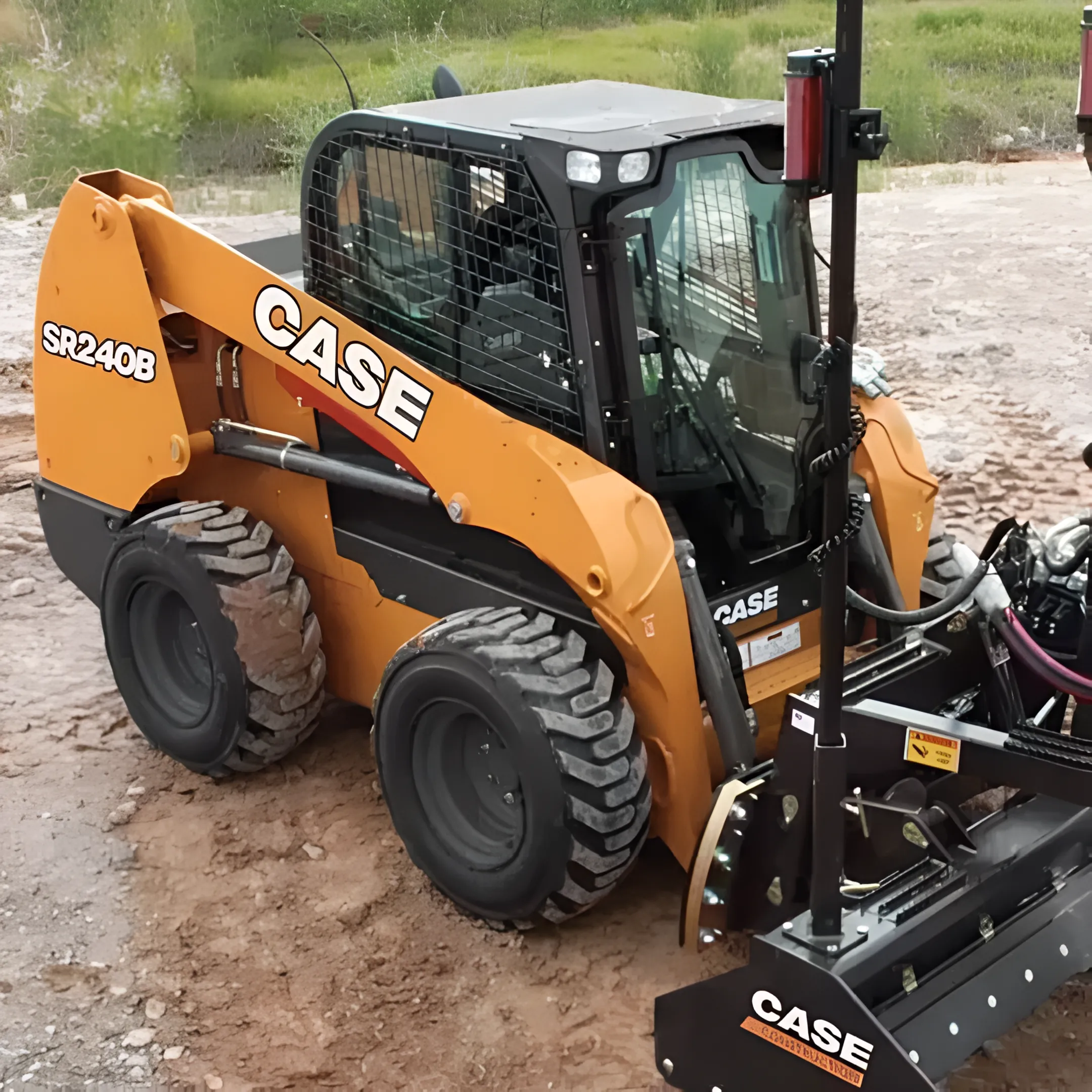

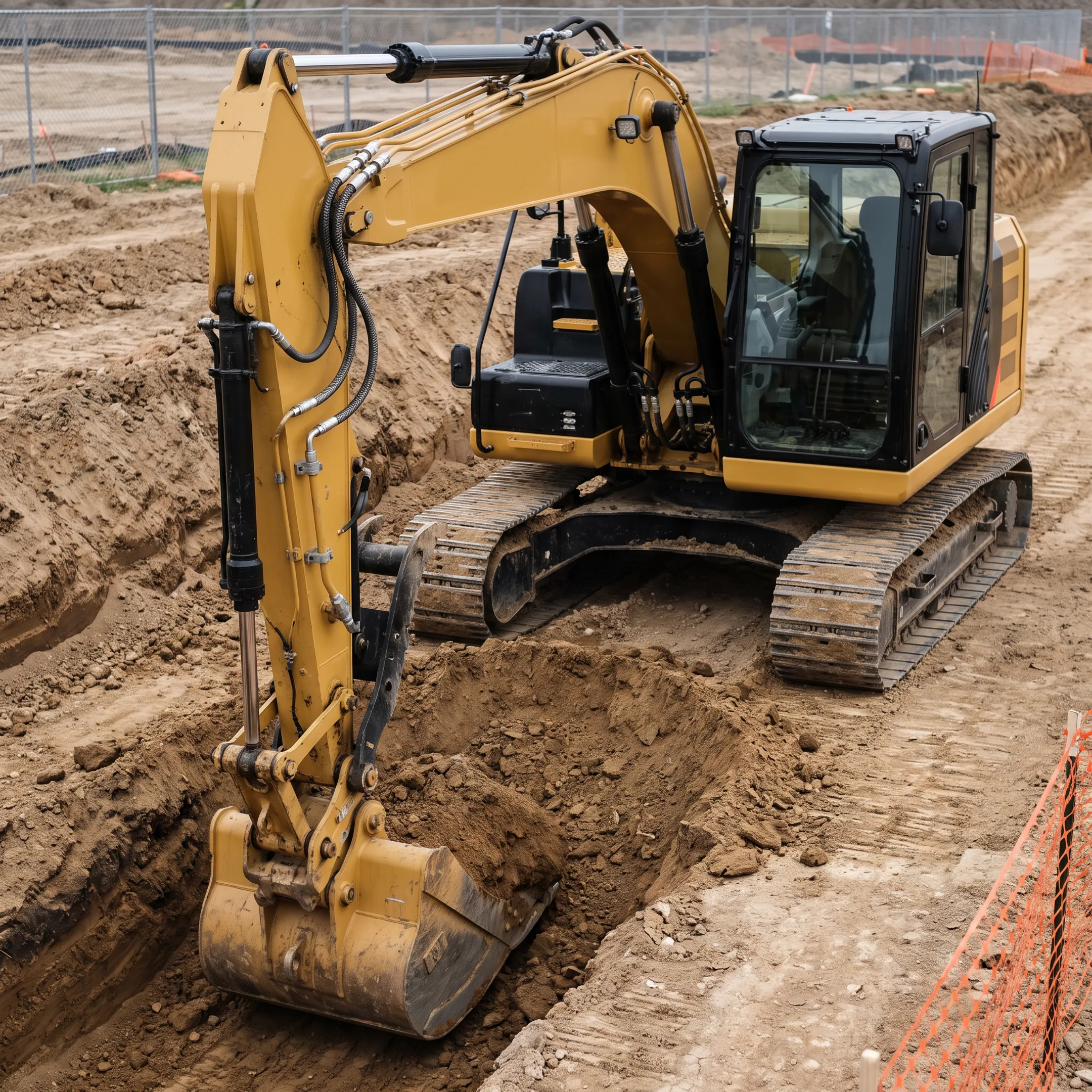

These assemblies are used for equipment hydraulic lines, including skid steer and compact track loader auxiliary circuits, mini and compact excavator auxiliary and thumb circuits, pilot and control lines, case drains, backhoe circuits, telehandler attachment lines and compaction equipment. They may also support attachment fabrication, retrofit work and fleet hose refreshes. Routing, abrasion protection, bend radius and fluid compatibility must be checked for the specific machine.

Yes. McCann states that custom hydraulic hose assemblies can be made in-shop or on-site, including 3/8 inch assemblies within its published 1/4 inch to 1 inch build range. On-site fabrication can be useful when equipment cannot be moved easily. The final assembly still requires correct measurements, fitting selection, hose construction, crimp specifications, routing and pressure suitability for the machine circuit.

SAE J517 defines hydraulic hose constructions, including the 100R series, while SAE J1273 covers selection, routing, fabrication, installation, storage and maintenance. OSHA 29 CFR 1910.147 is relevant to lockout/tagout and stored hydraulic energy. ISO 4406 addresses fluid cleanliness codes. These references do not replace the equipment manufacturer’s requirements or the hose maker’s assembly instructions; confirm the selected configuration at the counter.
