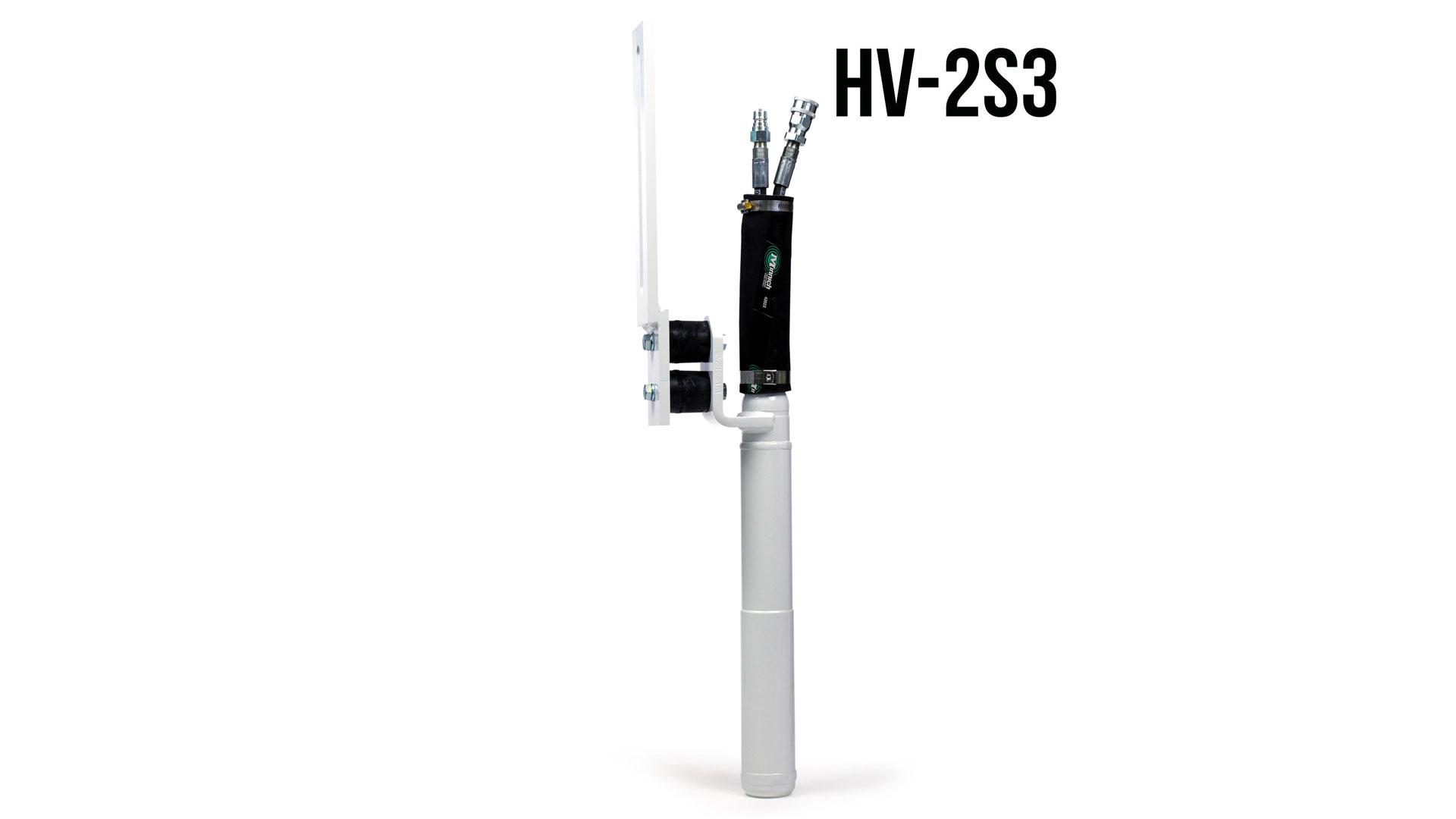

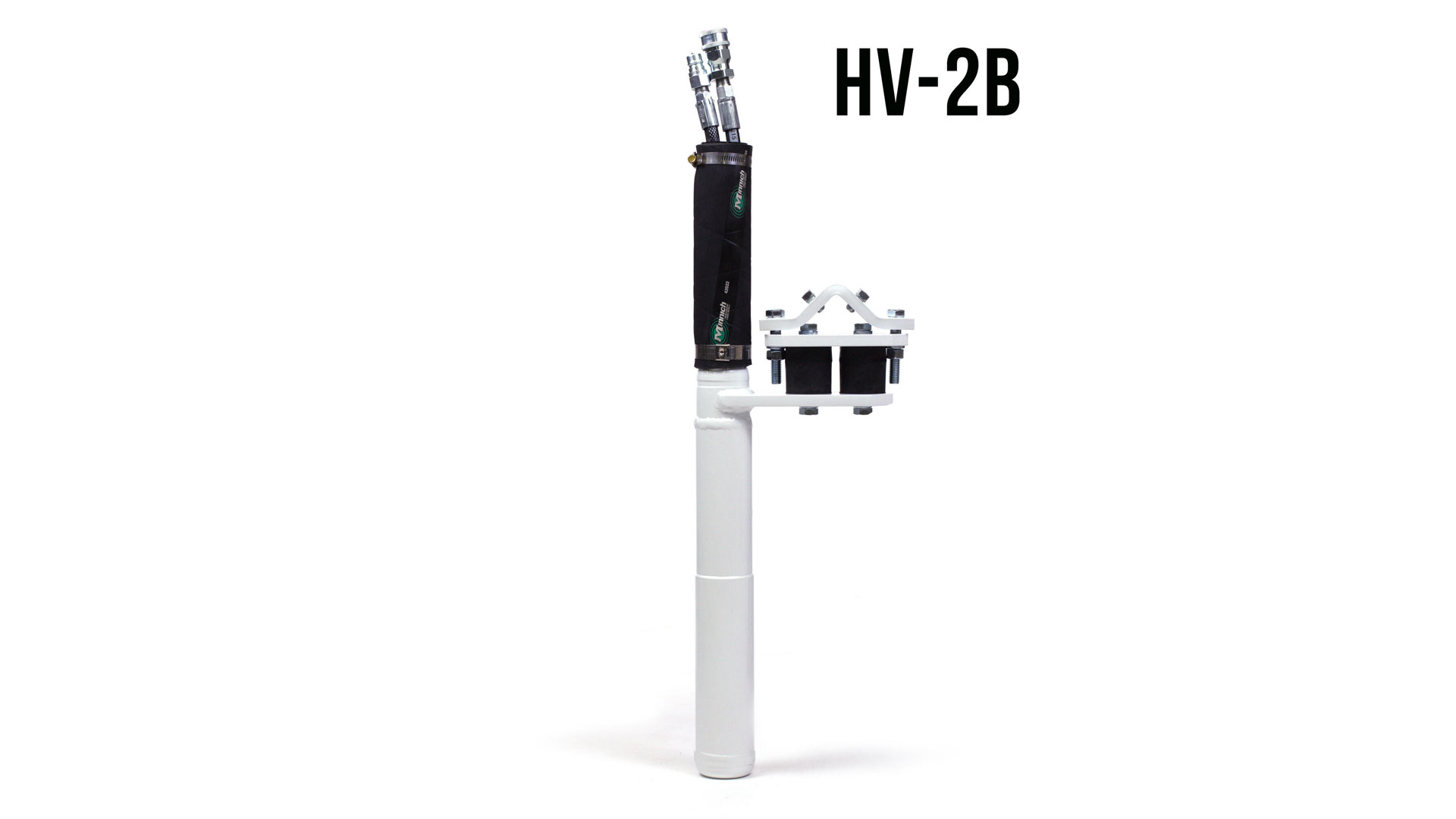

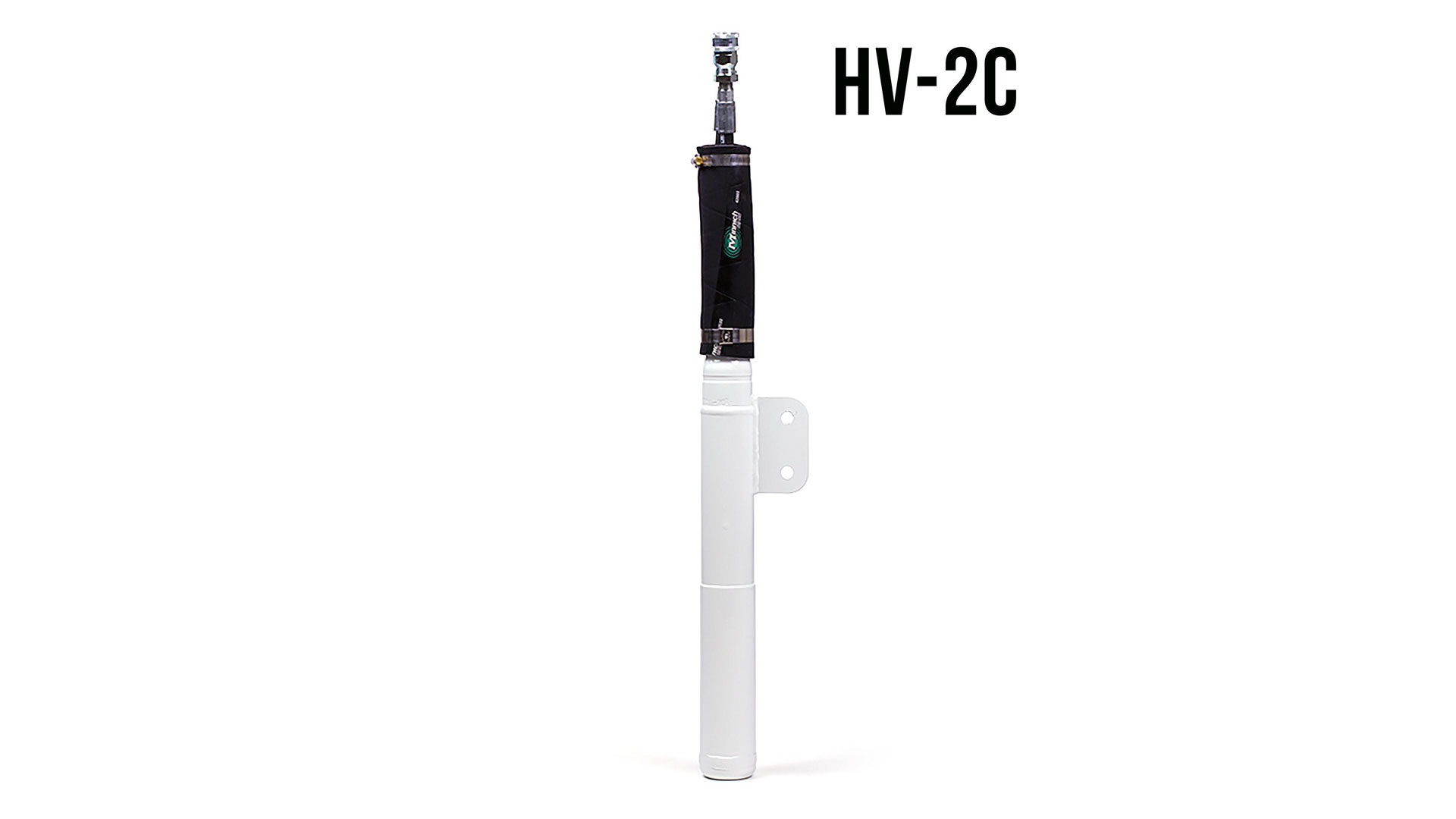

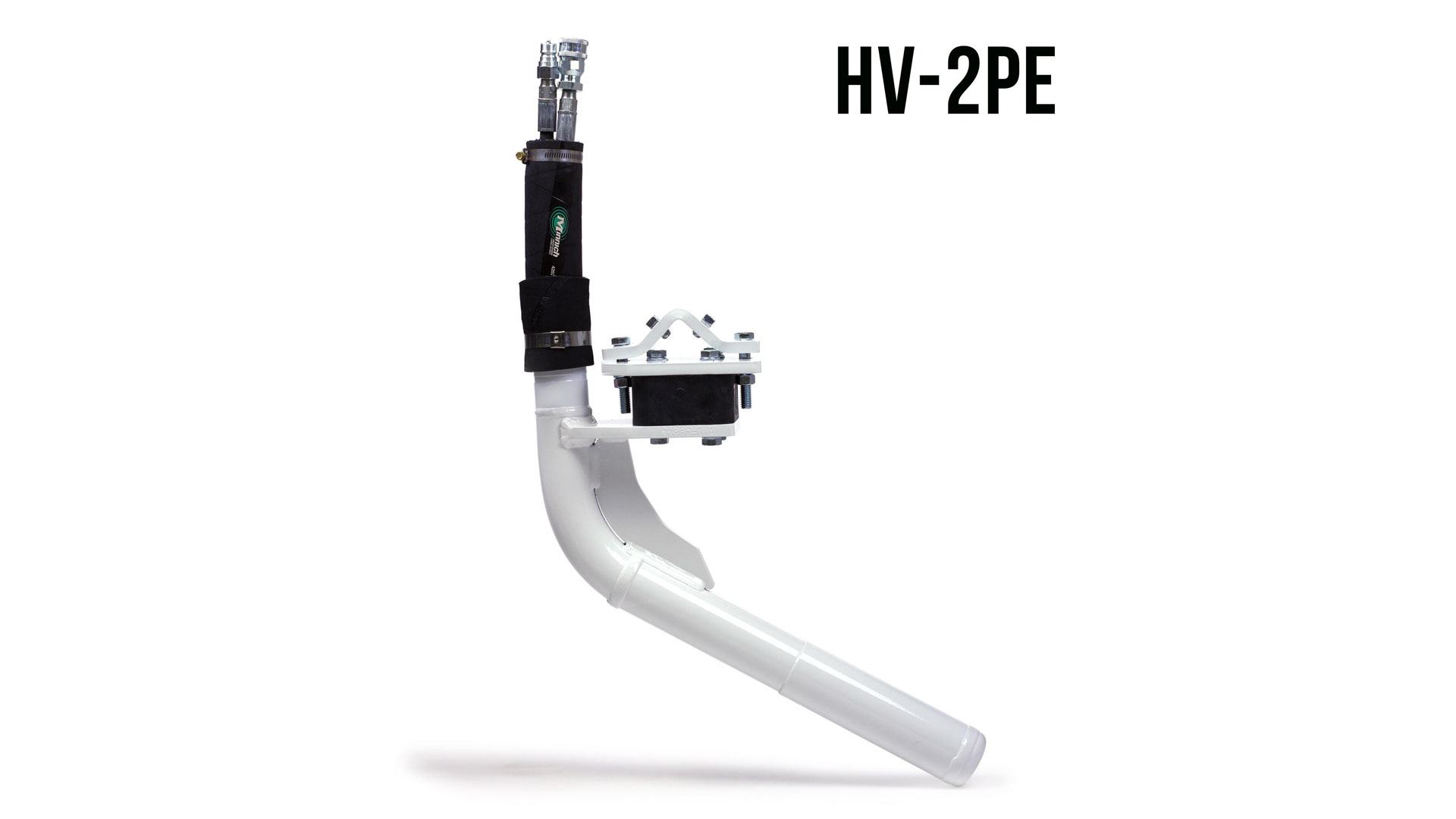

Minnich HV-2 Series
With a head diameter of 2-5/8”, Minnich HV-2 Series hydraulic internal paving vibrators are ideal for most slip-form applications. Minnich paving vibrators are designed to withstand the rigors of the industry. For mainline paving, a block isolator offers better shear spring rate, less area for concrete build-up and a greater rubber-to-steel bond area. This translates to less end-of-day clean-up time, reduced transfer of vibration to the paver and less wear on the isolators. A two-isolator setup can fit into tighter areas for barrier wall molds. The hydraulic hose features an abrasion-resistant coating to help reduce vibrator failure. A specially designed Minnich three-gear motor provides hydrostatic balance for longer motor life and greater starting torque.
- Round Vibrator Heads
- Block Isolator
- Armor Coated Hydraulic Hose
- Minnich Designed and Built Hydraulic Motor
- Three gear motor provides hydrostatic balance for longer motor life
- Designed to provide greater starting torque
Head Diameter
2-5/8" (66.67mm)
Centrifugal Force (10,000 VPM)
2,232 LBS (9,930N)
Amplitude
0.126" (3.20mm)
Diameter of Influence @ 10,500 VPM
26.50"-30.50" (673.1mm-774.7mm)
Maximum Flow
4GPM (15.14 l/min)
